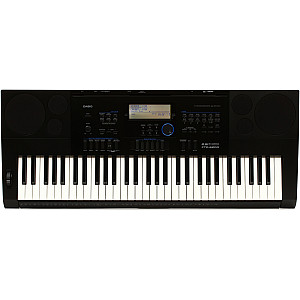

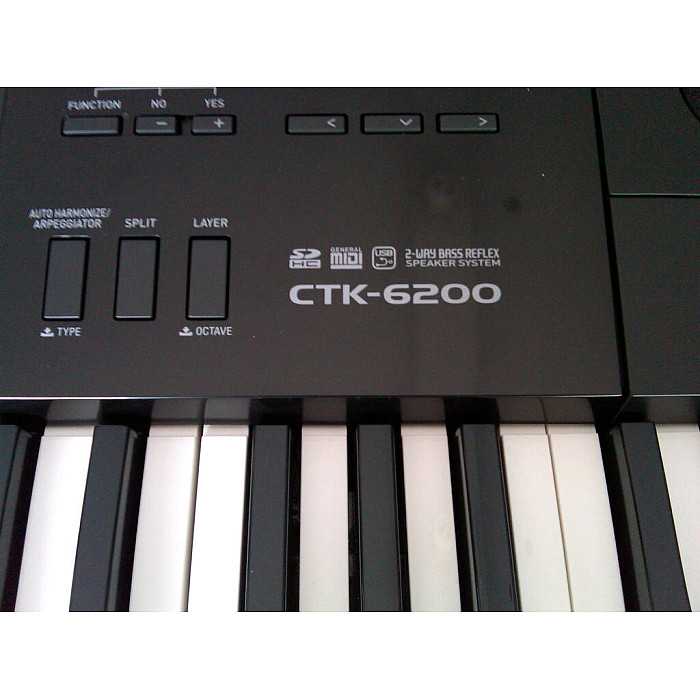

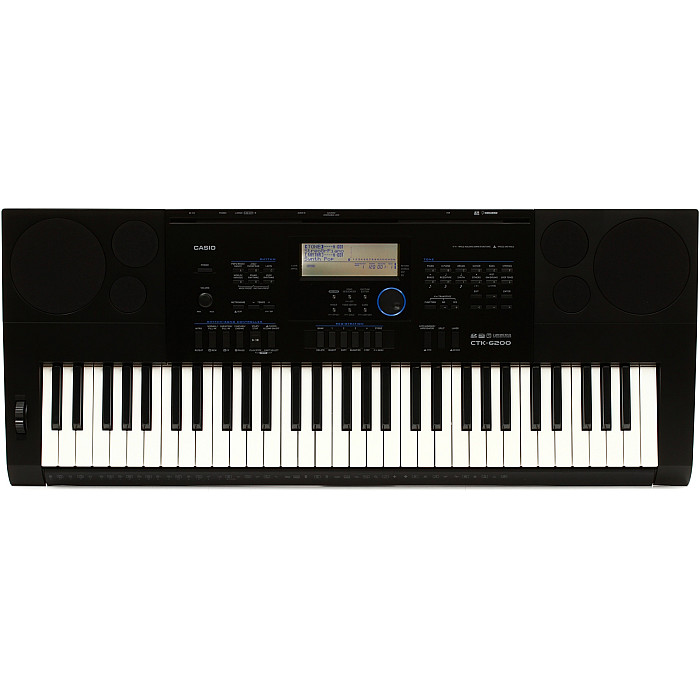

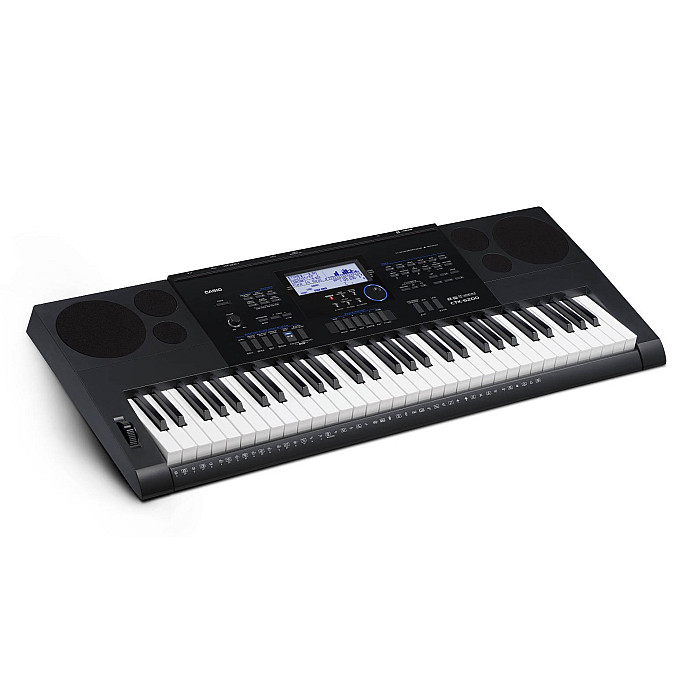

Casio CTK 6200 Portable Keyboard

Keyboard: 61 keys (Piano-style)

Touch Response: 2 sensitivity levels, Off

Sound Source: AHL(Dual-element)

Maximum Polyphony: 48

Tones: 700 built-in tones (10 user tones)

Layer/Split: Layer, Split(variable split point)

Digital Effects

• Reverb: 10types
• Chorus: 5 types (simultaneous use with DSP not supported.)
• DSP: 100 preset, 100 user (simultaneous use with Chorus not supported.)
• EQ(Equalizer): 5(Off, Soft, Bright, B.Boost, Powerful)
• Auto Harmonize: 12
• Arpeggiator: 150

Rhythms/Patterns: 210 built-in rhythms (10 user rhythms)

Auto Accompaniment

• Modes: CASIO Chord, Fingered 1, Fingered 2 (6th off), Fingered 3 (on bass), Full Range Chord
• Controllers: Start/Stop, Intro, Normal/Fill-in, Variation/Fill-in, Synchro/Ending

Built-in Songs: 5 (demo tunes)

Metronome: Beats: 0, 2, 3, 4, 5, 6 (Tempo range: quarter note = 30 to 255)

Recorder: Song sequencer: 16 multi tracks + 1 System Track, 5 songs, approximately 12,000 total notes (real-time recording, step recording, song edit, track edit,event edit)

Other Functions

• Mixer: 32 channels
• Rhythm editor (10 user rhythms)
• Tone editor (10 user tones)
• Registrations: 32 setups (4 sets x 8 banks)
• Music preset: 305 preset with chord progression, chord edit ( 50 user presets)
• One-touch preset: 210 sets
• Arpeggiator: 150 types
• Temperaments (scales): Preset scale (Equal temperament + 16 types)/scale fine tune
• Octave shift: ±2 octaves
• Rhythm/song controller
• Pitch bend wheel : 0 to 24 semitones
• Large Dial
• Key Transpose: ±1 (-12 to +12 semitones)
• Tuning Control: A4 = 415.5 - 440.0 - 465.9 Hz
• Pedals: Standard jack (sustain, soft, sostenuto, start/stop)
• Display Screen: LCD with backlight

SD Memory Card Slot

• Supported memory cards: Up to 32GB SD memory cards or SDHC memory cards
• Functions: SMF playback (up to 320KB per file), file save/load/delete, card format
• Save/load: Registrations, user rhythms, user tones, user DSPs, user music presets, song sequencer songs

MIDI

• GM Compatibility: Level1
• Terminals: USB

Speakers: 12cm x 2 + 3cm x 2, bass-reflex system

Amp Output: 6W＋6W

Input/Output Terminals

• Audio in
• Line output (L/MONO, R)
• Headphones (standard stereo jack)
• Sustain/assignable
• USB: type B
• External power (12V DC)
• * USB cable (A-B type) required to use USB terminal for computer connection.

Power Requirements

• Batteries: D-sizex6/AC adaptor: AD-A12150LW

Dimensions (W x D x H)

• 948 x 384 x 122mm
• * Excluding music stand, and other projections

Weight

• 5.7kg (Excluding batteries)

Included Accessories

• Music stand, AC adaptor
